PrimeTime™ qPCR Probe Assays
Primer and probe premixed sequences for analyzing gene expression in any species using fluorescently labeled 5′ nuclease probes
PrimeTime qPCR Probe Assays consist of a primer pair and fluorescently labeled 5′ nuclease probe. Obtain predesigned sequences for human, mouse, or rat for easy selection based on multiple criteria such as exon location and number of transcripts. Create custom assays for any sequence from any species using the PrimerQuest™ Tool.
Ordering
- Predesigned sequences will achieve 90% efficiency or better, or we will replace the assay with an alternative design free of charge.
- Size and scale options available for digital PCR (dPCR) platforms
- Pair with high-performance ZEN™ or TAO™ to create a double-quenched probe.
- Select a primer:probe ratio from 2:1 to 4:1 with no additional charge
- Receive primers and probe sequences with all orders
Have a question about PrimeTime qPCR Probe Assays?
We’re here to help. Discover what’s possible.
Contact usPrimeTime qPCR Probe Assays in tubes (1 probe/2 primers)
Available in various sizes, premixed, and shipped dried down.
|
Probes/primers supplied in the following ratios: 0.5/1.0 nmol (Mini); 2.5/2.5–10 nmol (Standard); 12.5/12.5–50 nmol (XL). You may specify the primer-to-probe ratio (except for PrimeTime Mini).
* Predesigned assays are available for human, mouse, and rat targets.
PrimeTime qPCR Probe Assays in 96-well plates (1 probe/2 primers)
Available in various sizes, premixed, and shipped dried down.
|
Probes/primers supplied in the following ratios: 0.5/1.0 nmol (Mini); 2.5/2.5–10 nmol (Standard); 12.5/12.5–50 nmol (XL). You may specify the primer-to-probe ratio (except for PrimeTime Mini). A minimum order of 24 assays is required per plate.
Available dye and quencher combinations for PrimeTime qPCR 5′ Nuclease Assays in plate well format
| 5' dye | 3' quencher | Mini | Standard | XL |
|---|---|---|---|---|
| FAM | ZEN™/Iowa Black™ FQ* | • | • | • |
| FAM | TAMRA | – | • | • |
| HEX | ZEN/Iowa Black FQ* | – | • | • |
| TET | ZEN/Iowa Black FQ* | – | • | • |
| Cy® 5 | Iowa Black RQ | – | • | • |
Key: • = available; – = not available
* ZEN/Iowa Black™ FQ is a Double-Quenched Probe, which provides superior performance compared to traditional single-quenched probes. For more information download the PrimeTime Custom qPCR Probes Flyer.
Product details
- PrimeTime qPCR Probe Assays consist of a forward primer, a reverse primer, and a qPCR probe all delivered in a single tube or 96-well plate
- Available in 18 dye–quencher combinations and 3 reaction scales
Predesigned PrimeTime qPCR Probe Assays are designed using IDT’s proprietary algorithm and optimized for melting temperature (Tm), single nucleotide polymorphism (SNP) avoidance (using up-to-date NCBI RefSeq data), minimized off-target amplification, splice variant recognition, and secondary structure prediction.
For commonly studied pathways in human, mouse, and rat, we offer suggested gene sets—available in the Resources section below—that can be loaded into the PrimeTime plate ordering system for fast, efficient, and high-throughput qPCR setup.
Transparency with every order
Orders include primer sequences to help labs enhance publication credibility by adhering to MIQE guidelines, identify and avoid SNPs, facilitate multiplex experiment design, assist with data interpretation and troubleshooting, and enable transcript validation.
Product data
PrimeTime qPCR Probe Assays provide reliable results
To demonstrate the performance of different dye-quencher combinations, we tested a dilution series to evaluate PCR efficiency and R2 values across all dye-quencher combinations available (Figure 1).
| Dye-quencher combination | FAM/ZEN/Iowa Black FQ | Sun/ZEN/Iowa Black FQ | HEX/ZEN/Iowa Black FQ | TET/ZEN/Iowa Black FQ | Cy5/TAO/Iowa Black RQ |
|---|---|---|---|---|---|
| Amplification curve |
|
|
|
|
|
| Standard curve |
|
|
|
|
|
| Efficiency | 97.4 | 99.7% | 98.4% | 97.2% | 95.0% |
| Correlation coefficient (R²) | 0.997 | 0.998 | 0.997 | 0.998 | 0.999 |
Figure 1. Demonstrated assay performance with multiple dye–quencher combinations. A gBlocks Gene Fragment dilution series of the HPRT gene was used to test different dye-quencher combinations. The data show PCR efficiency and R2 values close to 1 across all dye/quenchers available for PrimeTime qPCR Assays. All reactions were run using IDT’s PrimeTime Gene Expression Master Mix under standard two step cycling conditions 95°C for 3 min, (95 °C for 15 sec + 60°C for 1 min) x 40 on the QuantStudio™ 7 Flex (Thermo Fisher Scientific) 386 well format. Reactions were 10 µL in volume and contained 500 nM primers and 250 nM probe. The PrimeTime Gene Expression Master Mix was used with low ROX reference dye.
Compatibility with commercially available master mixes
To determine the success of PrimeTime qPCR Probe Assays with commercially available master mixes, we tested 5 different master mixes over a dilution series of 6 orders of magnitude (Figure 2). The PrimeTime qPCR Probe Assays had efficiency close to 100% across many commercially available master mixes. We have also developed the PrimeTime Gene Expression Master Mix for use with PrimeTime probe-based assays in two-step RT-qPCR.
| Product | Qiagen QuantiNova Probe PCR Kit | Thermo Fisher Scientific TaqMan Fast Advanced | Bio-Rad Sso Advanced | Aligent Stratagene Brilliant II® | Takara Premix Ex Taq | IDT Gene Expression Master Mix |
|---|---|---|---|---|---|---|
| Amplification curve |
|
|
|
|
|
|
| Standard curve |
|
|
|
|
|
|
| Efficiency | 102.1% | 98.6% | 99.8% | 98.0% | 101.8% | 99.1% |
| Correlation coefficient (R²) | 0.998 | 0.998 | 0.996 | 0.996 | 0.999 | 0.998 |
Figure 2. Successful amplification of PrimeTime qPCR Probe Assays with various commercial qPCR master mixes. A 10-fold dilution series over 6 orders of magnitude (1 x 106 to 1 x 101 copies) was created for the HPRT1 transcript. The standard curves were generated by running the assay with the indicated commercial master mixes. The samples were run on a Thermo Fisher Scientific QuantStudio™ 7 Flex instrument under standard cycling conditions for 40 cycles. The data shows greater than 90% efficiency and correlation coefficients greater than 0.99 for all tested qPCR master mixes.
Low variability between assay lots and across assay scales
PrimeTime qPCR Probe Assays have low variability from lot to lot and across scales, which supports your research needs for re-ordering consistent assays and for transitioning from discovery or validation applications to screening. We tested 5 genes from 2 lots each of mini, standard, and XL PrimeTime qPCR Probe Assays. The assays showed consistency between lots and across all 3 scales with negligible Cq variation (Figure 3).
| Gene ID | ||||||
|---|---|---|---|---|---|---|
| HPRT1 | PGK1 | RPLP0 | UBC | WDR3 | ||
| Mini | Replicate 1 | 27.1 | 23.7 | 21.1 | 21.8 | 26.7 |
| Replicate 2 | 27.1 | 23.7 | 21.1 | 21.8 | 26.6 | |
| Standard | Replicate 1 | 27.2 | 23.7 | 21.1 | 21.6 | 26.5 |
| Replicate 2 | 26.9 | 23.5 | 21.1 | 21.6 | 26.4 | |
| XL | Replicate 1 | 27.1 | 23.5 | 21.0 | 21.3 | 26.4 |
| Replicate 2 | 27.0 | 23.5 | 21.1 | 21.4 | 26.3 | |
| Amplification curves |
|
|
|
|
|
|
Figure 3. PrimeTime qPCR Probe Assays are consistent from lot to lot and across scales. Reverse transcription of qPCR Human Reference total RNA (Agilent) was performed using oligo(dT), random hexamers, and SuperScript® II (Thermo Fisher Scientific). Each qPCR reaction contained 50 ng of cDNA. All assays were run in duplicate on the CFX384 Touch Real-Time PCR system (BioRad) for 45 cycles using the PrimeTime Gene Expression Master Mix. The Cq values for the 2 replicates are shown. Assays for 5 genes were formulated as PrimeTime Mini, Standard, and XL qPCR Assays.
Dynamic range down to 10 copies
To show the dynamic range for PrimeTime qPCR Probe Assays, we tested a dilution over 6 orders of magnitude down to 10 copies per reaction (Figure 4). All dilutions tested produced highly consistent results.

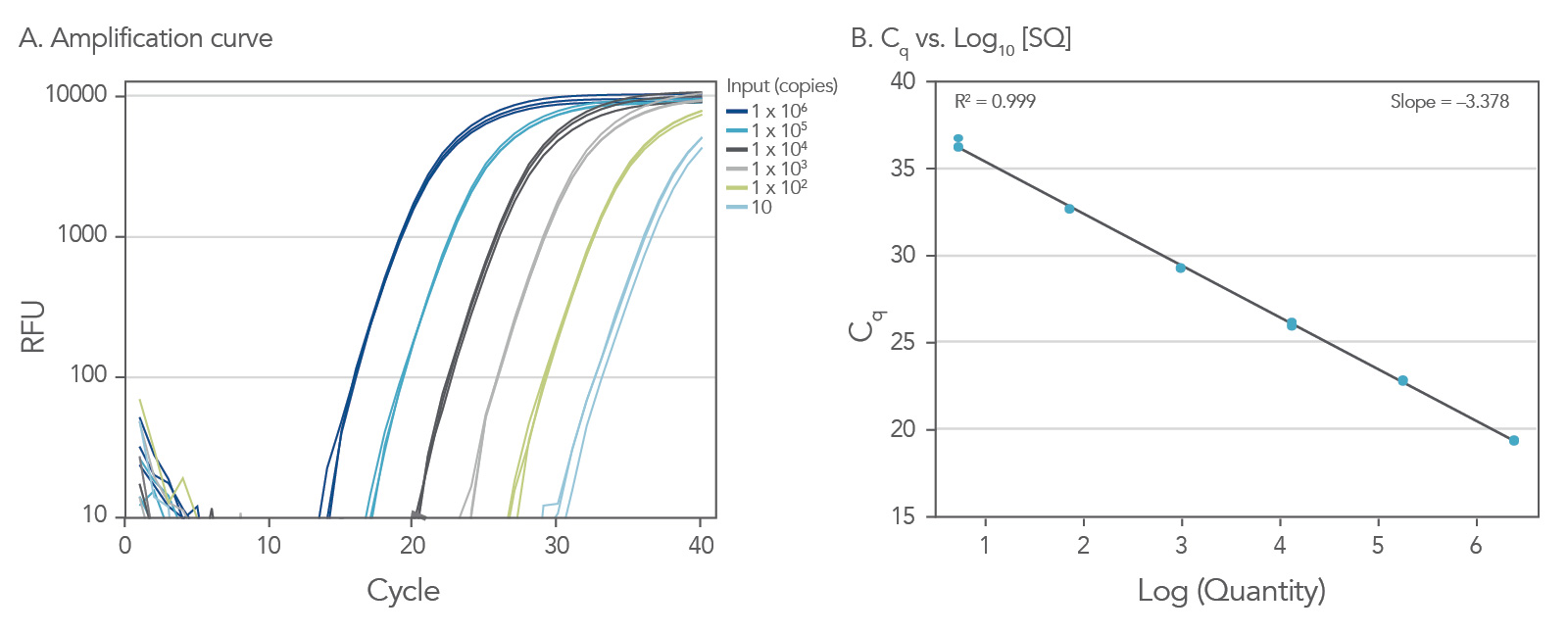

Figure 4. Dynamic range (6 logs) down to 10-copies. An HPRT PrimeTime qPCR Probe Assay was analyzed by utilizing a gBlock Gene Fragments dilution series and a no template control (NTC). The data shown illustrates 6 logs of dynamic range and assay down to 10 copies per reaction. The efficiency of the assay calculated from the standard curve is 97.6% with a correlation coefficient of 0.9991.
PrimeTime qPCR Probe Assays excel with fast-cycling protocols
Fast cycling allows for higher throughput and faster access to results. Unfortunately, researchers often have to sacrifice performance for speed. PrimeTime qPCR Probe Assays were tested using the PrimeTime Gene Expression Master Mix, which allows run times as short as 45 minutes. These results were compared to 30 matched, inventoried assays from a competitor.
- Greater low copy input limit─twelve out of the sixteen PrimeTime qPCR Probe Assays had lower Cq values compared to matched, inventoried assays from a competitor.
- No sacrifice in efficiency─all PrimeTime Assays maintained efficiencies of 90–105%.
Lower mean Cq values
Sixteen assays from a competitor were compared to an equal number of PrimeTime qPCR 5' Nuclease Assays. To ensure the assays were comparable, the PrimeTime Assays and Competitor assays were selected to span the same exon boundary of each gene. The reactions were run with the PrimeTime Gene Expression Master Mix and identical thresholds were set for all runs (Figures 5).
Figure 5. PrimeTime qPCR Assays have consistently lower mean Cq values for the same target. PrimeTime qPCR Assays were compared to matched Competitor assays using five, 4-fold dilutions of cDNA and the PrimeTime Gene Expression Master Mix. The reactions were run on the CFX384 Touch Real-Time PCR system (BioRad) for 45 cycles with the following PCR cycling conditions: 2 min 50°C; 10 min 95°C; 45 x (15 sec 95°C, 1 min 60°C). Identical thresholds were set for all runs for comparison across assays.
Higher qPCR efficiency
qPCR efficiency was compared using 30 PrimeTime qPCR Probe Assays and Competitor A assays (Figure 6). Again, the PrimeTime qPCR Assays showed a higher average qPCR efficiency than Competitor assays. In addition, the overall distribution of qPCR efficiency was narrower and higher than that for Competitor assays.
Figure 6. PrimeTime qPCR Assays have higher average qPCR efficiency and a smaller distribution range than Competitor assays. PrimeTime qPCR Assays were compared to matched Competitor assays using five, 4-fold dilutions of cDNA and the PrimeTime Gene Expression Master Mix. The reactions were run on the CFX384 Touch Real-Time PCR Detection System (BioRad) with the following PCR cycling conditions: 2 min 50°C; 10 min 95°C; 45 x (15 sec 95°C, 1 min 60°C). Identical thresholds were set for all runs for comparison across assays.
Resources
User guides and protocols
Brochures and flyers
Handbooks
Aids for fluorophore and quencher selection
Gene sets for common pathways
Frequently asked questions
Why is there no signal or product amplified in my qPCR assay?
No signal or amplification can result from a number of causes ranging from problems with the experimental design to inadvertently leaving out a necessary component from the reaction.
Here are some recommendations:
- Check the sequences of the probes and primers to be sure the bases and fluorophore/quencher modifications are all correct.
- Run the failed qPCR on an agarose gel to check for the correct amplification product size.
- If you do not see an amplicon you can try adding more cDNA to the reaction mixture.
- If you do see an amplicon on the gel, check the real-time PCR instrument to make sure it is set at the correct wavelength to detect the right fluorophore and that it is set to monitor the fluorescence at the correct step of the PCR protocol which is after the elongation step.
- If your amplicon is very GC rich, you can also try adding up to 5% formamide to the reaction mixture. You can also increase the Mg2+ concentration (in increments of 0.5 mM, up to 7 mM) but increased Mg2+ concentration can also cause nonspecific priming.
- Check the master mix components; it is possible that one of the components (such as the polymerase or probe) were inadvertently left out. We recommend that you repeat a failed experiment once to make sure it was not due to a simple mistake in the first round.
- Check on the probe design. How long is the probe? What is the Tm of the probe? Probes must be around ~10°C higher than the primers so that the probe can hybridize before the primers.
- If the Tm of the probe is too low, it will not hybridize and no signal will be generated. In addition, try to avoid a probe with a G at the 5' end. The G can quench the fluorophore which may result in poor signal generation.
How much cDNA is recommended per PrimeTime™ qPCR Assay reaction?
When running qPCR experiments, what is the difference between quantification cycle (Cq) and threshold cycle (Ct)?
The cycle at which fluorescence from amplification exceeds the background fluorescence has been referred to as threshold cycle (Ct), crossing point (Cp), and take-off point (TOF) by different instrument manufacturers. But the term is now standardized by the MIQE guidelines as the quantification cycle( Cq). A lower Cq correlates with higher target expression in a sample.
Access the MIQE guidelines at:
Bustin SA, Benes V, et al. (2009) The MIQE Guidelines: minimum information for publication of quantitative real-time PCR experiments. Clin Chem, 55(4): 611−622. Updates: Bustin
SA, Beaulieu JF, et al. (2010) MIQE précis: Practical implementation of minimum standard guidelines for fluorescence-based quantitative real-time PCR experiments. BMC Mol Biol.11: 74–78, and Bustin SA, Benes V, et al. (2011) Primer sequence disclosure: A clarification of the MIQE Guidelines. Clin Chem, 57:919−921.
How does the PrimeTime™ One-Step RT-qPCR Master Mix compare with one-step master mixes from other manufacturers?
How long can I leave my qPCR master mix (containing PrimeTime™ Gene Expression Master Mix) at room temperature and still generate consistent results?
The stability of PrimeTime Gene Expression Master Mix makes it ideal for overnight PCR runs and high throughput experiments using robotic liquid handling systems.
Reliable results have been obtained when the qPCR was run directly after setup or after the reactions were maintained at room temperature for up to 72 hr.
Download the white paper, Ambient shipping of PrimeTime Gene Expression Master Mix for more data.
Why does the reference dye come in a separate tube from the PrimeTime™ Gene Expression Master Mix?
We provide a separate tube of reference dye so that you may use the PrimeTime Gene Expression Master Mix on reference dye-dependent or dye-independent instruments.
Also, the separate tube of reference dye provides a way to add a high or low dye concentration to the master mix, depending on the requirements of your instrument.
Does the PrimeTime™ Gene Expression Master Mix use a hot-start polymerase?
Yes, it uses an antibody-mediated, hot-start polymerase. During the initial denaturation step of qPCR cycling, polymerase activity is unblocked when the polymerase is released from the antibody.
This hot-start polymerase enhances reaction precision of the qPCR by avoiding non-specific amplification of DNA and primer dimer formation. It is therefore critical to follow the cycling conditions provided in the PrimeTime Gene Expression Master Mix Protocol.
Is the Primetime™ Gene Expression Master Mix compatible with different real time PCR instruments or systems?
Reference dye is provided in a separate tube, so you may add it to the master mix at the levels required by your real-time PCR instrument.
How much reference dye should I add to the Primetime™ Gene Expression Master Mix?
The amount of reference dye that should be added to the PrimeTime Gene Expression Master Mix depends on which real-time PCR system you are using.
A table that details how much reference dye to add is provided in the PrimeTime Gene Expression Master Mix Protocol.
How should I determine the annealing temperature for a probe-based qPCR assay? Should I select a melting temperature midway between my primer and probe melting temperatures (Tm)?
When performing qPCR it is ideal to have your probe Tm about 5−10 degrees higher than your primer Tm. The annealing temperature should be set 3−5 degrees lower than the lowest primer Tm.
Use this as a general guideline, but note that optimization may still be necessary.
What qPCR products does IDT ship at ambient temperature?
We ship PrimeTime™ Gene Expression Master Mix, PrimeTime qPCR assays, and other oligonucleotide products at ambient temperature.
Why might the concentration of reference dye need to differ?
Different thermal cyclers have different requirements for dyes based on the excitation capability of the light source. Thus, different instruments have variable requirements for reference dye concentration.
Please refer to your instrument’s manual for information about these specific requirements.
Why do my primers have deleted 3' bases in the amplified fragment when I use a proofreading enzyme for PCR?
Proofreading polymerases (Pfu, Diamond Taq®, etc) have been shown to remove 3' bases from PCR primers [1].
If you experience this problem, you can protect your primer from degradation by adding one or more phosphorothioate bonds to the 3' end of your primer.
Also make sure to add the enzyme last, after the addition of dNTPs, in your PCR to minimize the risk of this issue taking place.
Reference
1. Skerra A. Phosphorothioate primers improve the amplification of DNA sequences by DNA polymerases with proofreading activity. Nucleic Acids Res. 1992;20(14):3551-3554.
Which dyes are compatible with my thermal cycler?
To determine what dyes are compatible with your instrument, download our Real-time qPCR assay design guide or take a look at the PrimeTime™ Multiplex Dye Selection Tool.
Which dyes are available for use with the IDT ZEN™ quencher?
Currently, the IDT ZEN quencher is available with FAM, HEX, TET, Yakima Yellow® (ELITech Group), JOE™ (Thermo Fisher Scientific), MAX™, and SUN™ fluorophores. Double-quenched probes have significantly lower background fluorescence, especially for longer probes.
The ZEN quencher is available on PrimeTime™ qPCR Probes and on the probes supplied with PrimeTime qPCR Probe Assays. For any special oligonucleotide requests that include the ZEN quencher but are not found on our website (non-catalog requests), please contact us.
For more information, see our DECODED™ article, Double-quenched probes increase qPCR sensitivity and precision.
